Understanding Insulation Resistance: A Beginner's Guide

Electrical insulation is a vital aspect of any electrical system. It refers to materials that prevent the flow of electric current, primarily ensuring safety and efficiency in electrical wiring and devices. The primary goal of insulation is to protect against unintended current leakage that can lead to electrical shocks, equipment damage, or even fire hazards.

What is Insulation Resistance?

Insulation resistance refers to the ability of electrical insulation to resist the flow of electric current. It is a measure of how well an insulating material can keep electricity contained within its intended path, preventing it from leaking to unintended areas. Essentially, high insulation resistance indicates that the insulation is effective, while low insulation resistance may signal that the insulation is failing or damaged.

Why is Insulation Resistance Important?

1. Safety: The most critical reason for conducting insulation resistance measurements is safety. A failure in insulation can result in electrical shocks, which can be dangerous or even fatal. Ensuring high insulation resistance helps to protect users from electrical hazards.

2. Equipment Protection: Electrical equipment is costly; protecting it from current leaks can prevent premature failure and costly replacements. Measuring insulation resistance helps identify vulnerabilities before they lead to major issues.

3. Performance Optimization: High insulation resistance improves the overall efficiency of electrical systems. Low insulation resistance can lead to energy losses, which are not only wasteful but can also increase operating costs.

4. Compliance: Many industries have regulations and standards that require certain insulation resistance levels to ensure the safety and reliability of electrical systems. Regular testing helps maintain compliance.

How is Insulation Resistance Measured?

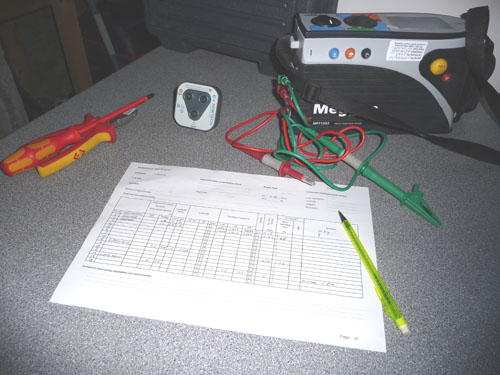

To measure insulation resistance, electricians typically use a special device known as a megohmmeter (or insulation resistance tester). Here's a simplified explanation of the process:

1. Preparation: Before testing begins, the circuit or component needs to be de-energized to ensure safety. All electrical power must be disconnected.

2. Connection: The megohmmeter has two probes. One probe is connected to the conductor (the part that carries the current), while the other is connected to the ground or the earth.

3. Testing: The megohmmeter applies a specific voltage, usually 250V, 500V, or 1000V, depending on the application. It measures how much current leaks through the insulation for a given voltage.

4. Reading the Results: The tester displays a value in ohms, indicating the insulation's resistance. A higher value (thousands or millions of ohms) is typically good, while lower values may suggest insulation deterioration

Factors Affecting Insulation Resistance

Several factors can influence the insulation resistance of a material:

1. Temperature: Insulation resistance decreases with an increase in temperature. This is because warmer conditions can cause materials to expand and change their conductive properties.

2. Moisture: Water can significantly reduce insulation resistance. Even small amounts of moisture can create conductive paths for electric current, leading to lower resistance readings.

3. Age and Wear: Over time, insulation materials can degrade due to exposure to heat, chemicals, and physical wear. Regular testing can help identify insulation that has reached the end of its useful life.

4. Pollution and Contaminants: Dust, dirt, and other environmental contaminants can accumulate on insulated surfaces, creating paths for leakage currents. Regular maintenance and cleaning can help preserve insulation integrity.

Acceptable Insulation Resistance Values

The acceptable insulation resistance value varies by the application, but general guidelines include:

• High Voltage Equipment: Resistance values should typically be above 1 megohm (1 MΩ).
• Low Voltage Equipment: Values of 1 MΩ are also acceptable, but some standards recommend higher values, such as 2-5 MΩ, for sensitive equipment.

Common Applications of Insulation Resistance Testing

1. Industrial Facilities: Regular testing in factories ensures that machinery operates safely and efficiently.
2. Commercial Buildings: Insulation testing helps maintain safety in electrical systems used in offices, stores, and other commercial areas.
3. Residential Homes: Home inspections often include insulation resistance tests to ensure that electrical systems are safe for family use.

Troubleshooting Low Insulation Resistance

If low insulation resistance is detected, a few steps can be taken to troubleshoot the issue:

1. Identify Leakages: Inspect the affected area for signs of moisture, damaged cables, or worn insulation.

2. Repair or Replace: If damage is found, affected cables or components may need to be repaired or replaced.

3. Testing After Repairs: After addressing the issue, retesting the insulation resistance is critical to ensure that the problem is resolved and the insulation is now effective.

Conclusion

Understanding insulation resistance is essential for ensuring the safety and performance of electrical systems. Regular testing and maintenance can prevent electrical hazards and equipment failures, extending the life of the devices and systems we rely on daily
